A popular brand of high-frequency X-ray machines in the field of non-destructive testing (NDT)!
Over 150 NDT machines installed annually in China!
In stock, fast repair, and guaranteed customer downtime of up to 72 hours!
High versatility and modular design, built-in various tube type program, one key adjustment can complete the old high voltage generator upgrade!
High pressure oil insulation for easy maintenance and repair!

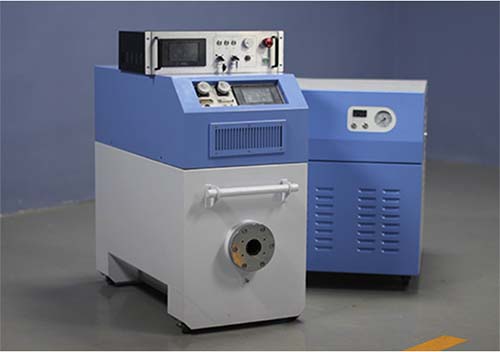

Inheriting the rigorous manufacturing standards of the Raysov brand, the PTS series of high-frequency x-ray machines offer customers a maximum of 4500W continuous operation x-ray machine with a selection of high-quality metal-ceramic ray tubes matched with Power Tree high-voltage power supplies and cooling products. It can provide stable X-ray sources for NDT, industrial CT, biological irradiation, thickness measurement, scientific research and other applications. PTS ray machine modulator adopts high-frequency double closed-loop control, no need to increase the auxiliary voltage regulator power supply, can overcome the interference and fluctuation of external network voltage through its own rectification power supply, imaging stability. It is not disturbed by the fluctuation of power supply at the site of use, fully ensuring the stability of the radiation output dose. Bipolar power supply using dual modulator control, fully overcome the single modulator control caused by the voltage imbalance between the bipolar problem, extending the service life of the ray tube.
The whole machine protection is powerful, with kV, mA with the protection, for any kV, mA value can be set 1%-5% of the protection value, a slight discharge can reach microsecond protection. 1 Intelligent control
● Touch screen operation, you can directly input parameters and menu selection
● Operation language: Chinese/English can be selected
● Tube type selection: pre-programmed tube type of mainstream ray tube manufacturers, specific matching can be selected in the system parameters menu for specific ray tube models
● Power curve: Pre-programmed according to the power curves of different ray tubes to maximize the characteristics of ray tubes in use
● kV control:
 Accuracy: 0.5%; kV step 0.1kV
 Stability：After 1 hour warm-up, the variation does not exceed 0.25% within 8 hours
 Repeatability accuracy: 0.01%
● mA control:
 Accuracy：0.5%；mA step by step 0.1mA
 Repeat accuracy：0.1%
2 Use environment
● Input power：220V AC ± 10%
● Operation temperature: -5~40℃
● Storage temperature：-25℃ ~ ＋70℃
3 Safety
● Interlock protection interface reserved
● Real-time monitoring of indicators and automatic fault alarm
● Equipped with ray work indicator, flashing when the ray is on
● Coolant flow and temperature monitoring and alarm
4 Transmission thickness [Film transmission conditions: FFD 700mm.
Pb-screen 0.02mm, black level 2.0,100mA?min;]
Real-time illumination conditions: FDD=800mm, FOD=500mm]
5 Overall characteristics
● Strict aging test before the whole machine is delivered to fully guarantee the stability
● Anti-discharge shock protection, fully enhance the reliability and durability of the product
Easy installation, high voltage cable flange connection, other cables and cooling pipeline are quick connection
High frequency technology with stronger penetration capability and more stable radiation dose
