Inheriting the rigorous manufacturing standards of the Raysov brand, the Raysov PFS series high-frequency constant-voltage X-ray machine is an upgraded version of the PTS series with better integration, providing more competitive X-ray sources and high-voltage power supplies for extended applications in the sorting, security, irradiation, and thickness measurement industries.

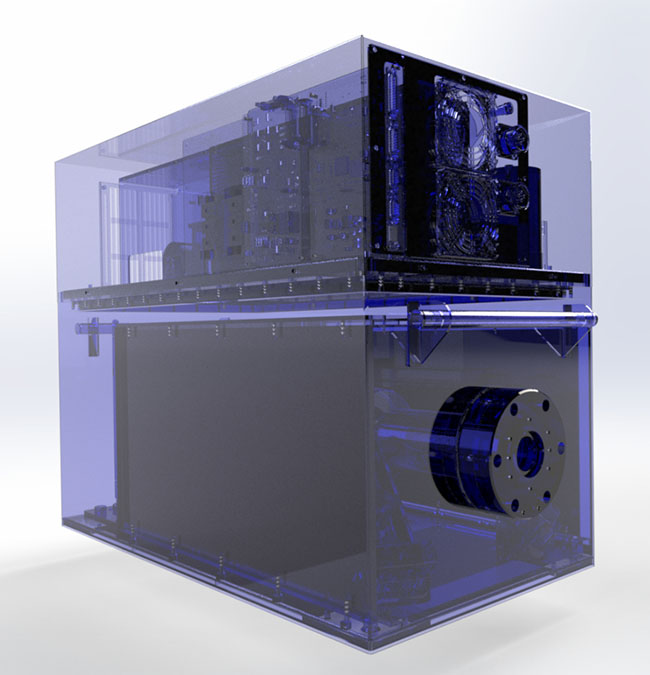

More minimalist size for easy integration of the whole machine;
Integrated, digital design, with higher grade AD, DA chips, perfect monitoring of internal signals, guaranteeing higher stability and long-term non-stop operation;
Enhance the control accuracy of kV, mA, better than 0.1%, also can be customized according to the needs of higher accuracy;
Enhance the sensitivity of discharge protection to better protect the ray tube and high voltage circuit. 1 Intelligent control
● Touch screen operation, you can directly input parameters and menu selection
● Operation language: Chinese/English can be selected
● Tube type selection: pre-programmed tube type of mainstream ray tube manufacturers, specific matching can be selected in the system parameters menu for specific ray tube models
● Power curve: Pre-programmed according to the power curves of different ray tubes to maximize the characteristics of ray tubes in use
● kV control:
 Accuracy: 0.25%; kV step 0.1kV
 Stability：After 1 hour warm-up, the variation does not exceed 0.25% within 8 hours
 Repeatability accuracy: 0.01%
● mA control:
 Accuracy：0.5%；mA step by step 0.1mA
 Repeat accuracy：0.1%
2 Use environment
● Input power：220V AC ± 10%
Operating temperature: -5℃ to 40℃
● Storage temperature: -25℃ to +70℃
3 Safety
● Interlock protection interface reserved
● Real-time monitoring of indicators and automatic fault alarm
Equipped with ray work indicator, flashing when the ray is on
● Coolant flow and temperature monitoring and alarm
4 Transmission thickness [Film transmission conditions: FFD700mm, Pb-screen 0.02mm, black level 2.0,100mA?min;]
[Real-time illumination conditions: FDD=800mm, FOD=500mm]
5 Overall characteristics
● Strict aging test before the whole machine is delivered to fully guarantee the stability
● Anti-discharge shock protection, fully enhance the reliability and durability of the product
Easy installation, high voltage cable flange connection, other cables and cooling pipeline are quick connection
High frequency technology with stronger penetration capability and more stable radiation dose
